Process Control System
  Brand / Solaris
  • 螢幕快照 2014-06-08 下午11.44.03
  • 螢幕快照 2014-06-08 下午11.44.55
- ProductProcess Control System
- SupplierSolaris

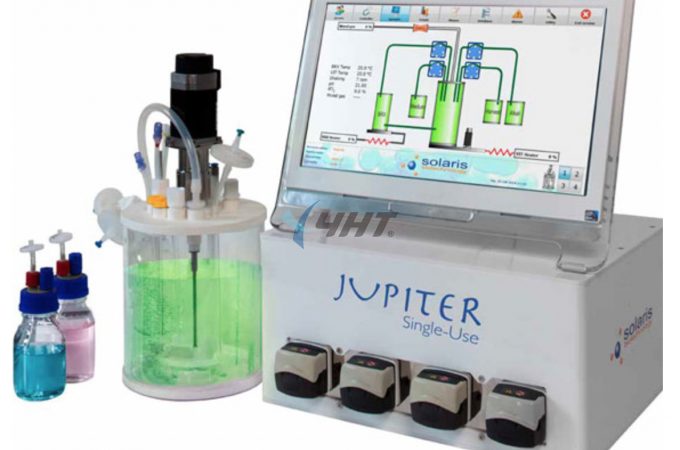

Jupiter is a competitive PCS designed for all CellVessel and small BactoVessel

One Jupiter PC can control 4 Jupiter PCS stations each PCS one SUB or SUF for R&D. Jupiter compact Process-Control-System (PCS) station integrate components in one cabinet, such as:
  • Gas mixing via selectable number (max 5) of MFC (Air, Oxygen, Nitrogen, CO2, overlay)
  • 4 speed controlled WM 114 DV peristaltic pumps (included)
  • Electrical heating via three parallel channels
  • Cooling control with on/off valve in supply line
  • Servo motor drive for SpeederMotion servo motor
